Description
Product description
Features:

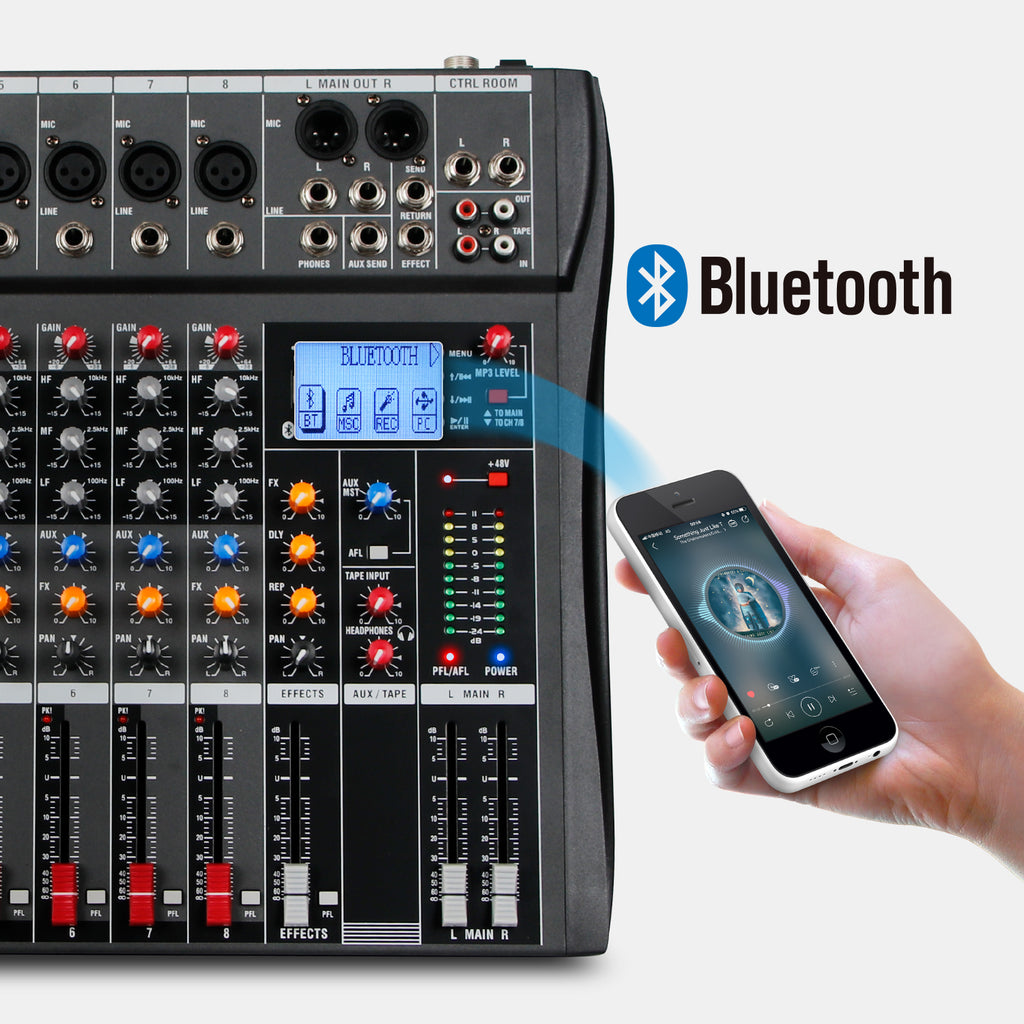

- Fits bluetooth function

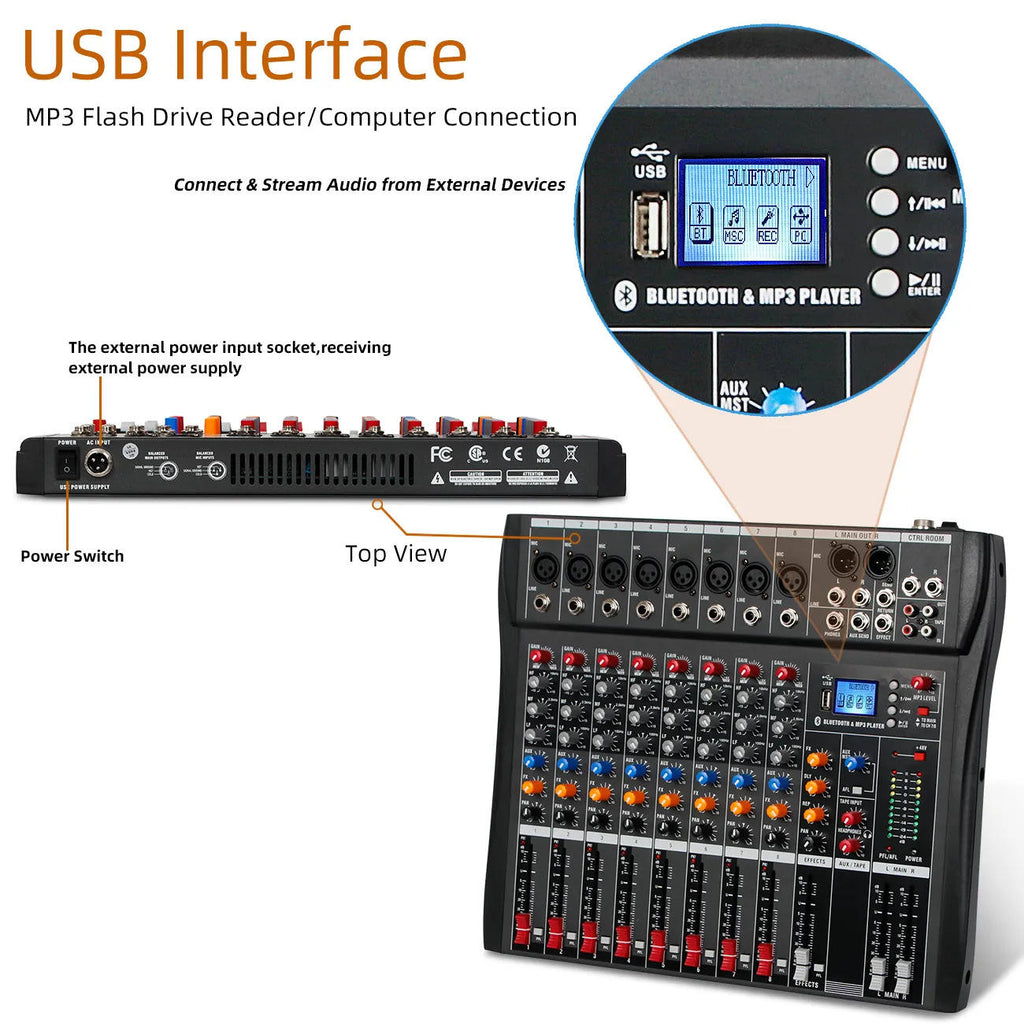

- USB plug and play
- Lightweight and portable

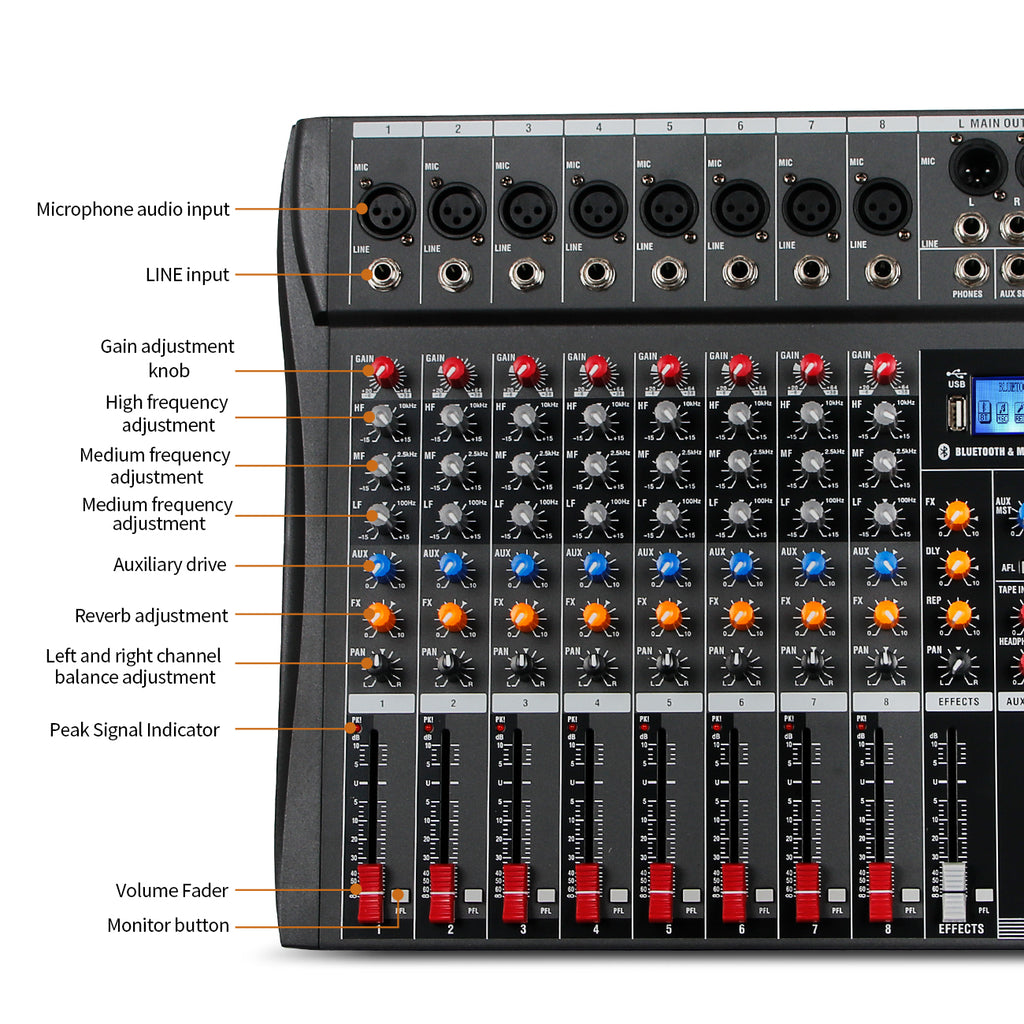

- Each mono with 3-band equalization
- 6 kinds of music modes
Specifications:
Maximum input level of the microphone: +24dBu
Line maximum input level: +24dBu
Maximum output level: XLR card + 26dBu
Main level meter: 10-segment LED, -24dB to CLIP
Frequency response: 20Hz-30Khz±0.5dB
Maximum power input power: 15W
Total chopping distortion (RHD+N): <0.01%
Crosstalk (1kHz): fader off >85dB channel >82dB
Noise (22Hz-22KHz): Equivalent input noise -122dBu Remaining output noise <-90dBu
Mono/stereo channel EQ: high frequency +/-15dB, 12KHz low frequency +/-15dB, 80KHz high IF +/-15dB, 2.5KHz
2-track return: RCA lotus seat, unbalanced, 4K ohm, -2dBu
2-track transmission: RCA lotus seat, unbalanced, <75 ohm, -2dBu
L/R output: XLR, balanced, tip hot end, <75 ohm, +4dBu, max +22dBu
FX/AUX output: TRS, unbalanced, tip hot end, <75 ohm, -2dBu, max +18dBu
Headphones: TRS, Tip L, Ring R, Recommended 30 to 600 ohm headphones
Size: 400mm*340mm*37mm
Package Includes:

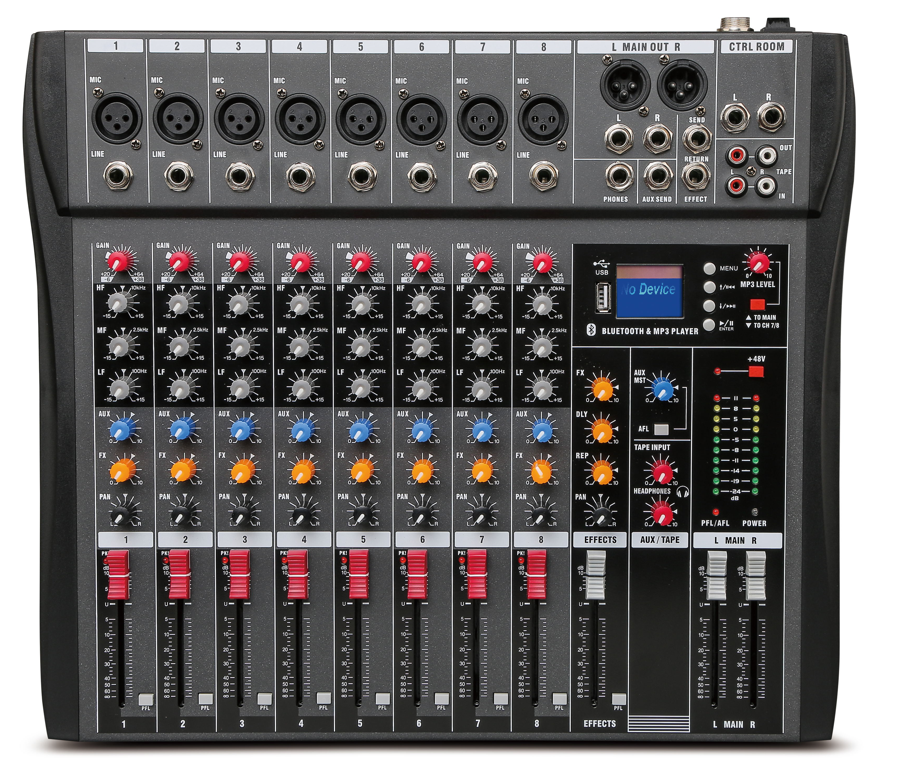

1 x Professional Mixer
1 x Power Adapter(US Plug)
1 x User Manual
