Product Description:

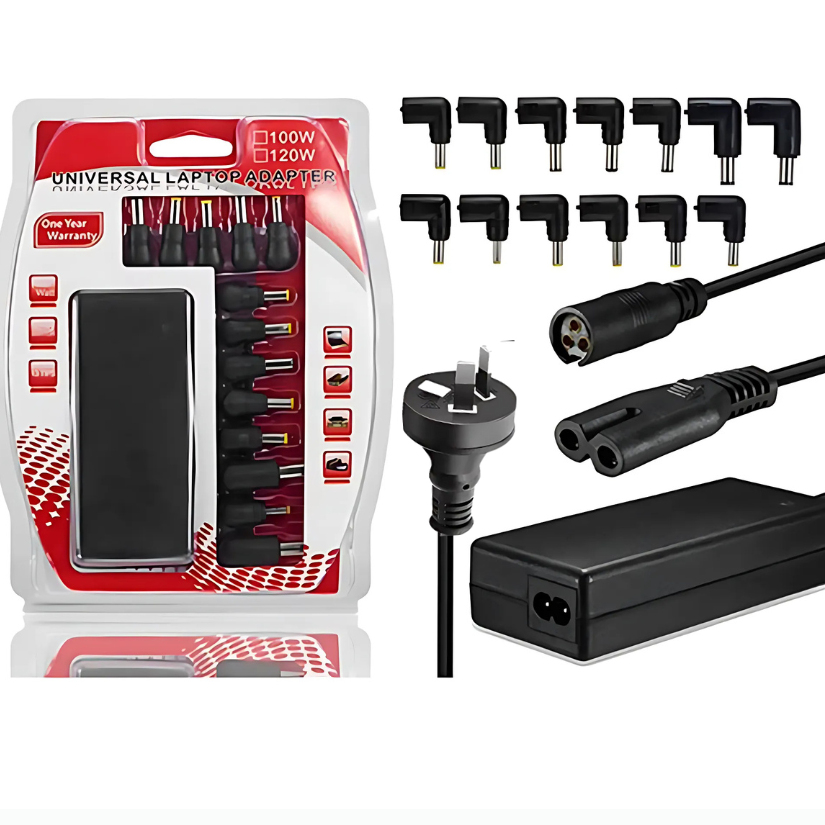

Power up your laptop reliably and safely with our Universal Laptop Adapter, engineered for compatibility with a wide range of major laptop brands. Featuring interchangeable tips, this adapter supports multiple output voltages (12V–24V) and provides a maximum output of 6A, making it the perfect all-in-one solution for home, office, or travel use.
Key Features:
-
Universal Compatibility – Works with popular brands like HP, Dell, Lenovo, Acer, Toshiba, Sony, Fujitsu, Samsung, IBM, and more.
-
Wide Voltage Range – Adjustable output voltage from 12V to 24V, supporting various laptop power requirements.
-
13 Interchangeable Tips – Easily swap connectors to match your device’s DC input port.
-
Automatic Voltage Adjustment – Ensures safe and efficient power delivery tailored to your laptop.
-
Built-in Safety Protections – Overvoltage, overcurrent, and short-circuit protection for safe operation.
Technical Specifications:
Input Voltage:
-
AC 100V – 240V, 50/60Hz (Worldwide compatible)
Output Voltage Options:
-
12V @ 5A Max
-
15V @ 6A Max
-
16V @ 6A Max
-
18.5V @ 5A Max
-
19V @ 5A Max
-
19.5V @ 5A Max
-
20V @ 5A Max
-
22–24V @ 4A Max
Connector Tips Included (13 Types):
| Tip No. | Voltage | Size (mm) | Compatible Brands |
|---|---|---|---|
| M1 | 15V | 6.3 × 3.0 | Toshiba |
| M2 | 16V | 5.5 × 2.5 | IBM |
| M3 | 16V | 6.0 × 1.4 | Fujitsu, Sony |
| M4 | 18.5V | 4.8 × 1.7 | Compaq, HP, LG |
| M5 | 19V | 5.5 × 2.5 | Acer, Dell, Toshiba, Liteon, NEC |
| M6 | 19V | 5.0 × 1.0 | Samsung |
| M8 | 19.5V | 6.0 × 1.4 | Sony |
| M9 | 19.5V | 7.4 × 0.6 | Dell |
| M10 | 20V | Dell 3-Pin | Dell |
| M11 | 20V | 7.9 × 0.9 | IBM, Lenovo |
| M12 | 18.5V | 7.4 × 0.6 | HP, Compaq |
| M15 | 19V | 5.5 × 1.7 | Acer, Delta |
| M18 | 12V | 5.5 × 2.5 | Samsung, LCD monitors |
Environmental Conditions:
-
Operating Temperature: 0°C to 40°C
-
Operating Humidity: 20% to 82%
-
Storage Temperature: -10°C to 70°C
-
Storage Humidity: 10% to 90%
